RUBBER GYM TILES · SOUTHEAST ASIA

Gym rubber flooring

Versaflor supplies rubber gym tiles for commercial gyms, fitness chains, studios and home gyms across Southeast Asia. Tiles come in 500×500 mm and 1000×1000 mm, from 10 mm to 100 mm thick, in black, colour fleck or full EPDM colour.

THICKNESS

10-100 mm

TILE SIZE

500 / 1000 mm

QUOTE TURNAROUND

1 day

TYPICAL LEAD TIME

4-8 wks

GET A QUOTE ON WHATSAPP REQUEST A QUOTE

THICKNESS GUIDE

Thickness by training zone

Thicker tiles absorb more impact from dropped weights. These are the typical choices for a commercial gym. We confirm the spec for each zone in your quote.

Zone	Typical thickness	Suggested tile
Cardio and machine area	10-15 mm	Molded interlocking tile
Functional training and stretching	15-20 mm	Interlocking tile, colour fleck or EPDM
Dumbbells and free weights	20-30 mm	All fine granules tile
Olympic lifting and drop zones	50-60 mm+	All fine granules tile or weightlifting platform

Weightlifting platforms come in 1500×1500 mm or 2000×2000 mm, 30 or 50 mm thick, with a steel frame. Sizes can be customised.

TILE TYPES

Eight rubber tile types

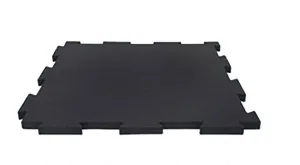

T-GML-R

Molded interlocking tile

All-black SBR granules. The workhorse gym tile: dense, quiet, easy to lay.

500×500 × 10/15/20/25 mm

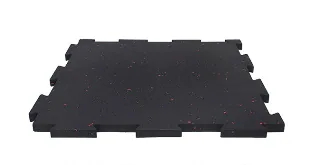

T-GML-R10

Interlocking tile, colour fleck

Black SBR + 10% EPDM colour granules for a speckled finish.

500×500 × 10/15/20/25 mm

T-PG-EBS

EPDM rubber tile

EPDM colour granule surface over a black SBR base for full-colour floors.

500×500 / 1000×1000 × 10-100 mm

T-GML-R100

Full EPDM interlocking tile

100% EPDM surface layer. Richest colour, outdoor-stable.

500×500 × 20/25 mm

T-GM-F

All fine granules tile

Fine black granules throughout. Softer, higher resilience. Best under free weights.

500/600/1000 sq × 10-50 mm · 1220×1830 × 12/15/20 mm

T-GM-FD

All fine dyed granules tile

Fine dyed granules in solid colours: red, gray and more.

600×600×15 · 1000×1000 × 15/30 mm

T-GM-F10

Colour dots tile

Fine black SBR + 10-70% EPDM colour dots. Choose your speck density.

500×500 / 1000×1000 × 15-50 mm

T-GM-C15…C100

Composited rubber tile

EPDM rubber-roll surface (15-100% colour) bonded to an SBR base. Smooth, impermeable top.

500×500 / 1000×1000 × 15/20/25/30 mm

TEST DATA

What the manufacturer tests show

> 40%

Impact absorption

vs GB 36246-2018 (> 25%)

61-63 dB

Impact noise reduction

GB/T 50121

Fire rating

Flame retardant

REACH

Environmental safety

Non-toxic, no pollutants

Manufacturer test data. Copies of the test reports are available for tenders.

INSTALLATION

Three ways to lay it

Interlocking

Glue-free and recyclable, for tiles up to 20 mm. Fast to lay and easy to lift.

Glued

MDI formaldehyde-free adhesive, for a permanent floor.

Hidden buckle

For tiles 25 mm and thicker.

Lay tiles on a flat, dry and level sub-floor. Installation can be arranged through partner installers where available.

FAQ

Questions gym owners ask

What thickness do I need for a commercial gym?

Most commercial gyms use 15 to 20 mm across the floor and 30 mm or more under free weights. Drop zones for Olympic lifting need 50 mm or more, or a lifting platform. Send us your layout and we suggest a spec for each zone.

Rubber tiles or rubber rolls?

Tiles suit free-weight and drop zones because they come much thicker and one damaged tile is easy to replace. Rolls suit large cardio and studio areas because they cover big floors with fewer seams.

How long does delivery take?

Typical lead time is 4 to 8 weeks from order, depending on quantity and destination. We confirm the timeline in your quote.

Can I see a sample before I order?

Yes. Physical samples can be couriered to you before you order.

Do you install?

We arrange installation through partner installers where available. We can also supply direct to your own contractor.

Which countries do you supply?

Malaysia, Singapore, Thailand, Indonesia, Vietnam, the Philippines and Brunei. Each quote is prepared for your project location.
